Square Milling Insert Product Range

Square milling inserts are part of the OMIST Plaquettes de fraisage product range and are grouped primarily by insert shape rather than by one specific milling operation.

This page focuses on square carbide milling inserts, existing-insert review, cutter matching requirements, and quotation information. OMIST reviews specific insert requirements using the complete designation and cutter system whenever this information is available.

Catalog Examples for Inquiry Reference

The following designations are catalog examples for inquiry reference:

These examples do not represent a complete stock or standard model list. OMIST reviews actual product availability and cutter matching according to the complete inquiry.

Other Square Insert Requirements

If your required square milling insert is not shown above, send the complete insert designation whenever possible.

If the exact code is unavailable, provide the existing insert, informations sur l'emballage, corps de coupe, des photos, or other available product references. OMIST can review the requirement before quotation.

Square Inserts for Milling Applications

The machining operation is useful when reviewing a square insert requirement, but the operation alone does not confirm the required insert.

OMIST also considers the existing cutter system and available insert information when reviewing a matching requirement.

Fraisage du visage

For face milling inquiries involving square inserts, fournir le modèle de corps de coupe existant et le marquage actuel de la plaquette chaque fois que disponible.

If the cutter body itself is also part of your inquiry, you can view the OMIST Fraise de surfaçage gamme.

OMIST reviews the cutter and insert requirements separately according to the actual application and cutter system.

Other Milling Requirements

For other milling requirements, send the machining operation, informations sur les couteaux existants, available insert code or photo, et le matériau de la pièce à usiner.

This information provides a clearer basis for reviewing the required square insert.

Square Insert Matching and Replacement Review

When sourcing a square milling insert replacement, product appearance alone is not enough to confirm the correct insert.

Similar square or near-square shapes may still differ in dimensions, insert design, or the cutter system in which they are used. Donc, OMIST reviews replacement requirements against the available insert and cutter information.

Confirmez la désignation complète de l'insert

Commencez par le marquage complet indiqué sur la notice ou l'emballage existant lorsque cela est possible..

The full designation gives a better basis for review than the insert shape alone. If the marking is incomplete or unclear, send a clear close-up photo together with any other available product reference.

Vérifiez le corps du coupeur et la poche d'insertion

For a replacement matching review, useful cutter information can include:

• Modèle ou marquage du corps de coupe
• Marquage d'insert existant
• Insérer des photos existantes
• Insert pocket photos
• Other relevant cutter or pocket information

This information helps review the requested square insert against the existing cutter system without assuming automatic compatibility.

Lorsque le modèle d'insertion est inconnu

If the complete insert model cannot be identified, send clear photos of the existing insert and cutter body.

Available dimensions, an existing sample, informations sur l'emballage, or an insert-pocket photo can also help with the review.

If application review is required at the same time, include the machining operation and workpiece material.

Workpiece Information for Quote Review

When the square milling insert requirement depends on the machining application, please provide the actual workpiece material.

Useful information may include:

• Matériau de la pièce
• Qualité du matériau, when known
• Opération d'usinage
• Existing cutter system
• Current insert information

This may include applications involving steel, acier inoxydable, fonte, aluminium, ou d'autres matériaux non ferreux.

OMIST uses the workpiece material as part of the inquiry review. The material alone does not confirm a specific insert configuration.

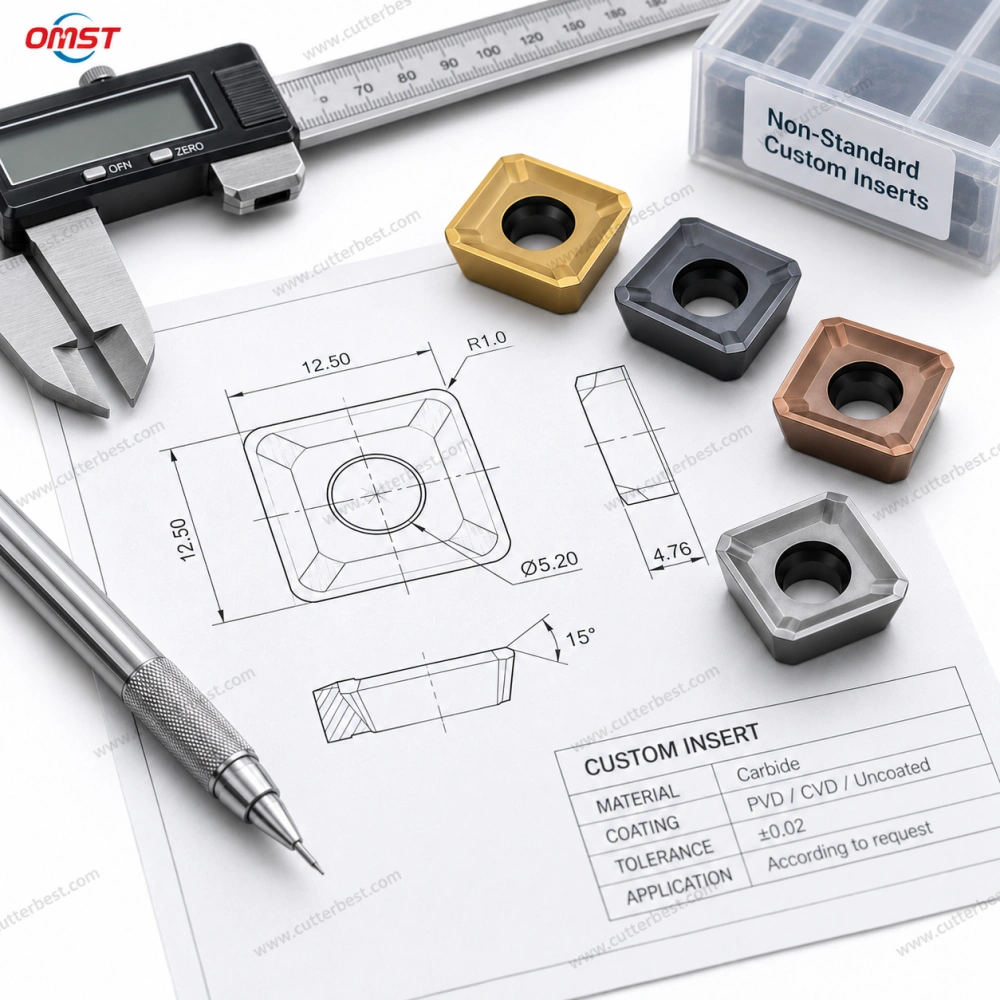

Évaluation d'inserts non standard basée sur un dessin

If a catalog insert does not meet the requirement, OMIST can evaluate a non-standard square milling insert inquiry based on the available customer drawing and application information.

OMIST reviews the submitted information before confirming manufacturing feasibility and quotation.

Informations à inclure

For a drawing-based inquiry, fournir les informations disponibles sur le projet:

• Dessin
• Dimensions requises
• Référence de plaquette ou de fraise existante, le cas échéant
• Matériau de la pièce
• Opération d'usinage
• Quantité requise

Not every non-standard design can be confirmed before review. Final feasibility depends on the actual drawing and project requirement.

How to Request a Square Milling Insert Quote

Choose the inquiry path according to the information you currently have.

Lorsque vous avez le code d'insertion complet

Envoyez la désignation complète de l'insert ainsi que la quantité requise.

If the insert is intended for an existing cutter and matching review is required, include the cutter body information as well.

When You Have an Existing Insert or Photo

If the complete model is unknown, envoyer des photos claires de l'insert existant, visible marking, informations sur l'emballage, and any available dimensions.

OMIST can review these references before confirming the exact requirement.

When You Need a Replacement for an Existing Cutter

Send the cutter body model or marking, existing insert information, insert-pocket photos, et quantité requise.

If the inquiry also involves application review, include the workpiece material and machining operation.

Square Milling Inserts FAQ

Can a Square Insert Be Reviewed If the Complete Model Is Unknown?

Oui. Send the available insert photos, marquage, informations sur le coupeur, sample details, or dimensions. OMIST can review the available information and advise whether additional details are needed.

Are Square Milling Inserts the Same as Shoulder Milling Inserts?

Non. Square milling inserts are grouped primarily by insert shape, alors que Plaquettes de fraisage d'épaulement are selected around the machining application and cutter system. A square-shaped insert should still be reviewed against the specific cutter body and insert pocket.

Can Non-Standard Square Insert Requirements Be Evaluated From Drawings?

Oui. OMIST can review customer drawings and application information before confirming manufacturing feasibility and quotation.

Request a Quote for Square Milling Inserts

If you have a square milling insert requirement, send us the available insert model, informations sur le coupeur, des photos, or drawing for review.

Contact OMIST by email at sales@cutterbest.com or chat with us on WhatsApp à +86 159 0755 2669 for quotation support.
