Ball Nose End Mill Series

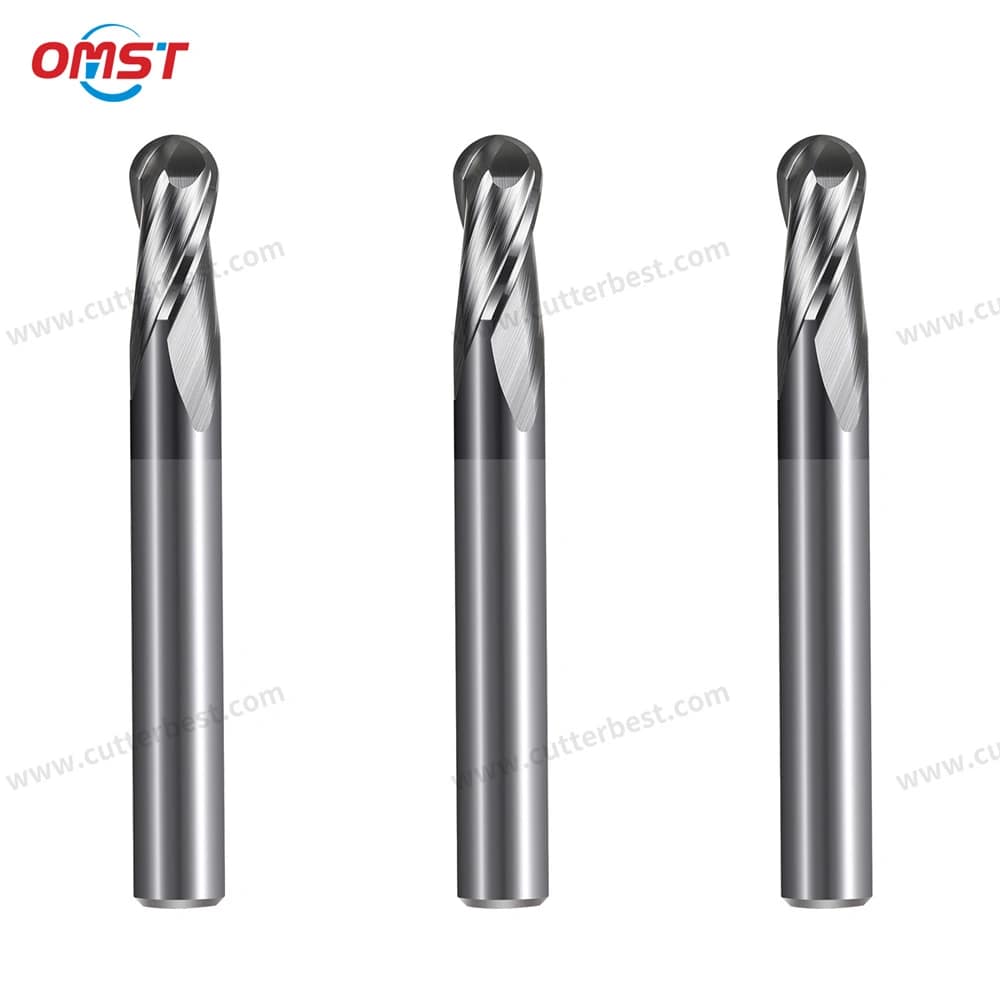

A ball nose end mill, also commonly called a ball end mill, is used for CNC contouring, mold finishing, curved-surface machining, and precision profile milling. CutterBest manufactures these solid carbide cutters in general-purpose, hardened, high-hardness, and automotive mold series, with 2-flute and 4-flute configurations and custom dimensions confirmed according to the workpiece material, hardness, and machining requirements.
| Ball Nose Series | Typical Workpiece Condition | Confirmed Product Features | Selection Focus |
|---|---|---|---|
| General-Purpose | Typically below HRC45 | Mainly 2-flute configurations | General CNC milling and finishing |
| Hardened | HRC45–60 | Ultrafine-grain carbide; TiAlN- or AlCrN-type coatings | Hardened workpiece machining |
| High-Hardness | HRC55–70; custom tools can be evaluated up to HRC75 | Ultrafine low-cobalt carbide, reinforced cutting edges, larger core, multilayer nano-composite coatings | High-hardness machining conditions |
| Automotive Mold | Depends on mold material and machining conditions | Supports long machining cycles, larger machining allowances, and cast mold blank conditions | Cutting stability and resistance to edge chipping |
General-Purpose Ball Nose End Mills
The general-purpose series suits common CNC milling and finishing applications with typical workpiece hardness below HRC45.
This series mainly uses 2-flute configurations. Customers can select the cutting diameter, ball radius, flute length, shank diameter, and overall length according to the required tool size and machining conditions.
Hardened Ball Nose End Mills
The hardened series covers workpieces in approximately the HRC45–60 range.
This series uses ultrafine-grain carbide with suitable wear-resistant coatings such as TiAlN- or AlCrN-type coatings. Workpiece material, hardness, cutter size, and machining conditions determine the final tool configuration.
High-Hardness Ball Nose End Mills
The high-hardness series is designed for workpieces from approximately HRC55 to HRC70.
We can evaluate selected custom designs for materials up to HRC75. This series uses ultrafine low-cobalt carbide, reinforced cutting edges, a larger core, and multilayer nano-composite coatings to improve edge stability and wear resistance.
For HRC70–75 applications, please provide the exact workpiece material, hardness, required tool dimensions, and machining information so we can evaluate the tool configuration.
Automotive Mold Ball Nose End Mills
The automotive mold series focuses on demanding mold-machining conditions rather than one fixed hardness range.
Its design emphasizes cutting stability and resistance to edge chipping during long machining cycles, larger machining allowances, and machining cast mold blanks.
The applicable hardness range may overlap with the hardened or high-hardness series. Therefore, tool selection should consider the mold material, hardness, machining allowance, toolpath, and finishing requirement.
Available Configurations & Customization
CutterBest supplies these cutters in different flute configurations and dimensional combinations. Tool size, reach, workpiece material, hardness, and machining conditions vary between applications, so we confirm the final configuration for each requirement.
2 Flute Ball Nose End Mills
We offer 2-flute ball nose end mills as an important configuration within the current product range, while the general-purpose series mainly uses 2-flute designs.
Available dimensions depend on the product series and application. Please provide the required tool size, workpiece material, hardness, and machining conditions for confirmation.
4 Flute Ball Nose End Mills
We also manufacture 4-flute ball nose end mills for CNC machining applications.
We can evaluate different cutting diameters, ball radii, flute lengths, shank diameters, and overall lengths based on customer requirements. Please provide the required size, workpiece material, hardness, and machining conditions for confirmation.
Custom Ball Nose End Mill Configurations
We can evaluate custom tools based on drawings, size information, existing tool references, or specific machining requirements. Depending on the application, we can confirm the cutting diameter, ball radius, flute length, shank diameter, overall length, flute configuration, coating, tolerance, or other tool geometry during quotation.
For non-standard tools, please send a drawing or clear dimensional information together with the workpiece material and machining requirements. This information helps us review the required tool structure before quotation.
Typical Applications
These cutters suit machining operations where the tool must follow curved, three-dimensional, or profiled surfaces.
Typical applications include 3D contouring, mold cavity finishing, die and mold finishing, curved-surface machining, radius machining, and precision profile milling.
For a more detailed application guide, read What Is a Ball Nose End Mill Used For?
Related Specialized Ball Nose Tools
Some applications require specialized cutter structures or material-specific tooling. Choose the appropriate product below for long-reach, tapered, or graphite machining requirements.
Long Reach Ball Nose End Mill
For deep cavities or restricted-access machining, a long-reach structure provides additional reach when a standard ball nose end mill cannot access the required area.
See our Long Reach Ball Nose End Mill for the dedicated long-reach product.
Tapered Ball Nose End Mill
Applications involving tapered walls or a tapered cutter body require a different tool geometry from a standard straight-shank ball nose end mill.
See our Tapered Ball Nose End Mill for the dedicated tapered geometry.
CVD Diamond Coated Tools for Graphite
Graphite machining requires a dedicated tool solution rather than treating graphite as another general-purpose ball nose application. The OMIST graphite ball end mill series uses CVD diamond coating.
For graphite machining options, see our Diamond Coated End Mills.
Technical Resources
The following guides provide more detailed information for application selection, cutter selection, terminology, and tool comparison.
For application details, see What Is a Ball Nose End Mill Used For?
Need help selecting the cutter? Read How to Choose a Ball Nose End Mill.
Our Ball Mill Cutter Guide explains alternative terminology.
To compare cutting geometries, see Ball Nose End Mill vs Flat End Mill.
You can also compare two rounded-end cutter designs in Bull Nose End Mill vs Ball Nose End Mill.
FAQ
Can you manufacture custom ball nose end mills?
Yes. We can evaluate custom dimensions and tool configurations from drawings, size information, existing tool references, workpiece material, and machining requirements.
Are 2-flute and 4-flute ball nose end mills available?
Yes. We offer both 2-flute and 4-flute configurations. Workpiece material, hardness, tool size, and machining requirements determine the suitable configuration and dimensions.
Which series is suitable for hardened materials?
The hardened series covers approximately HRC45–60, while the high-hardness series covers approximately HRC55–70. We can also evaluate custom tools for materials up to HRC75 according to the specific application.
What information should I provide for a quotation?
Please provide the required tool size or drawing, flute requirement, workpiece material, hardness, quantity, and relevant machining information. For non-standard tools, a drawing or existing tool reference helps us confirm the required geometry.
